Flat Panel para Rayos X Conexión al PC Wireless

Conexión Inalámbrica al PC o Notebook

Sin stock

Quick Details

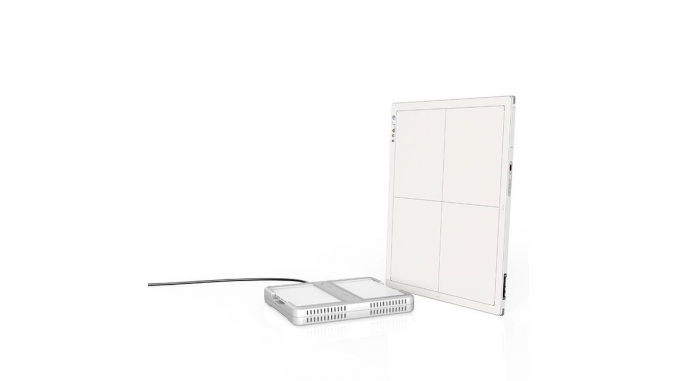

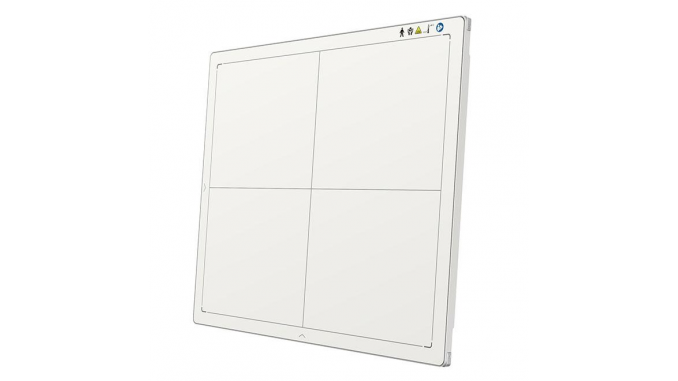

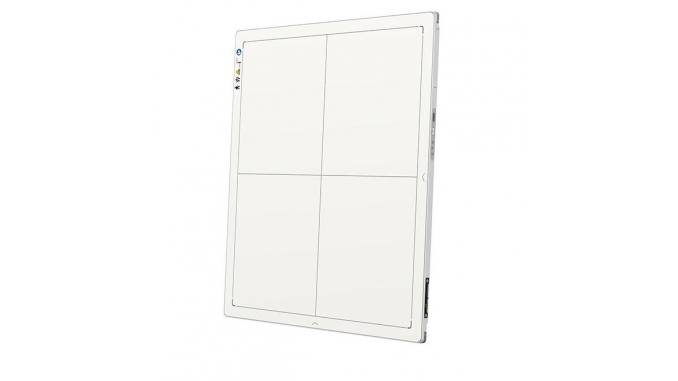

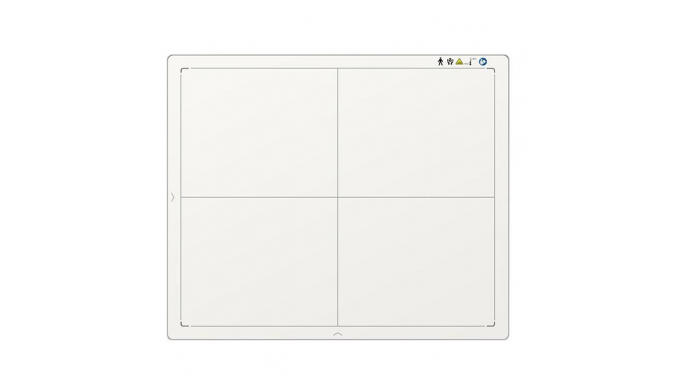

This is a smart 17x 17-inch wireless, cassette-sized FPD for radiographic imaging. It features reli-able AED, dependable wireless performance, and a long battery life. The supports a fast work flow, and is the optimal choice for both retrofit and new DR system solutions.

Specifications

FEATURES OF SUPERIOR 17 X 17-INCH CASSETTE-SIZE FLAT PANEL DETECTOR

Wireless cassette detector per ISO 4090, fits in bucky
139 pm pixel pitch, with 16 bit ADC for more image
details Stable iSync+ Automatic Exposure Detection (AED)

SPECIFICATION OF SUPERIOR 17 X 17-INCH CASSETTE-SIZE FLAT PANEL DETECTOR

Detector technology. Amorphous silicon
Scintillator: Csl
Active area mm: 427x427
Pixel matrix:3072x3027
Pixel pitch(um): 139
Resolution(lp/mm) 3.6
AD Conversion(bit) 16
Battery Autonomy(h):5
WIFI: 2.4G and 5G, IEEE802.11a/b/n/ac
Trigger Mode: AED/ software
Preview image time(s) 3.5
Full image time(s) Typ.5
Dimension (mm) 460x460x15
Weight(kg) 4.6
Static loading: 150kg uniformly
Ingress protection:IPX1
operating humidity:10%-90%
storage & transport humidity with package: 5%-95%
